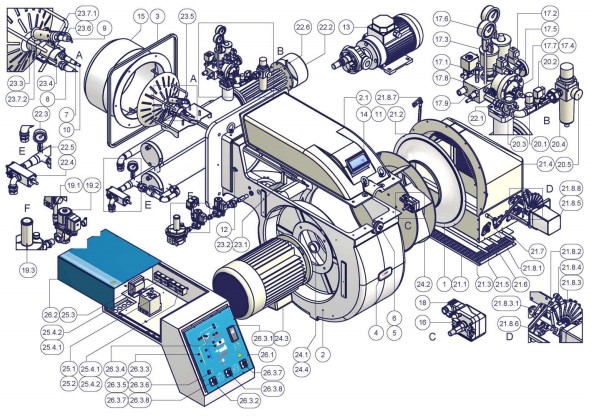

Desen explodat - Arzator pe gaz MILLE PBY1025 HPRSROA - 8700 kW | |||
| |||
| Poz. | Cod piesa | Denumire piesa | Lei fara TVA |
|---|---|---|---|
| 1 | Con admisie aer | 0.00 | |
| 2 | Caseta arzator | 0.00 | |
| 2.1 | Capac | 0.00 | |
| 3 | Tesatura fibre ceramice | 0.00 | |
| 4 | Eticheta identificare | 0.00 | |
| 5 | Priza | 0.00 | |
| 6 | Niplu | 0.00 | |
| 7 | Racord flexibil | 0.00 | |
| 8 | Racord flexibil | 0.00 | |
| 9 | Racord flexibil gaz | 0.00 | |
| 10 | Racord flexibil | 0.00 | |
| 11 | Vizor | 0.00 | |
| 12 | Fotorezistenta | 0.00 | |
| 13 | Pompa | 0.00 | |
| 14 | Brida | 0.00 | |
| 15 | Tun de ardere standard | 0.00 | |
| 16 | Presostat de aer | 0.00 | |
| 17.1 | Electroventil | 0.00 | |
| 17.2 | Electrovana aer comprimat | 0.00 | |
| 17.3 | Vana pneumatica clu | 0.00 | |
| 17.4 | Dispozitiv de blocare | 0.00 | |
| 17.5 | Termometru | 0.00 | |
| 17.6 | Manometru | 0.00 | |
| 17.7 | Regulator presiune CLU | 0.00 | |
| 17.8 | Regulator presiune aer comprimat | 0.00 | |
| 17.9 | Colector CLU | 0.00 | |
| 18 | Conector | 0.00 | |
| 19.1 | Priza presiune | 0.00 | |
| 19.2 | Electrovana gaz | 0.00 | |
| 19.3 | Regulator presiune gaz cu filtru | 0.00 | |
| 20.1 | Presostat de aer | 0.00 | |
| 20.2 | Electrovana aer comprimat | 0.00 | |
| 20.3 | Clapeta de sens | 0.00 | |
| 20.4 | Regulator aer comprimat cu filtru | 0.00 | |
| 20.5 | Manometru | 0.00 | |
| 21.1 | Grila | 0.00 | |
| 21.2 | Grila | 0.00 | |
| 21.3 | Clapeta admisie aer | 0.00 | |
| 21.4 | Admisie aer | 0.00 | |
| 21.5 | Ax jaluzea | 0.00 | |
| 21.6 | Ax jaluzea | 0.00 | |
| 21.7 | Ax jaluzea | 0.00 | |
| 21.8.1 | Ax reglare debit | 0.00 | |
| 21.8.2 | Brida | 0.00 | |
| 21.8.3 | Cama reglabila | 0.00 | |
| 21.8.3.1 | Banda cama reglabila | 0.00 | |
| 21.8.4 | Mecanism | 0.00 | |
| 21.8.5 | Servomecanism | 0.00 | |
| 21.8.6 | Cama | 0.00 | |
| 21.8.7 | Mecanism | 0.00 | |
| 21.8.8 | Ax servomecanism | 0.00 | |
| 22.1 | Garnitura | 0.00 | |
| 22.2 | Carcasa | 0.00 | |
| 22.3 | Manometru | 0.00 | |
| 22.4 | Regulator presiune | 0.00 | |
| 22.5 | Robinet manual | 0.00 | |
| 22.6 | Rezistenta | 0.00 | |
| 23.1 | Brida | 0.00 | |
| 23.2 | Tija suport duza | 0.00 | |
| 23.3 | Duza | 0.00 | |
| 23.4 | Suport duza | 0.00 | |
| 23.5 | Cap de aprindere | 0.00 | |
| 23.6 | Cablu de aprindere | 0.00 | |
| 23.7.1 | Electrod de aprindere | 0.00 | |
| 23.7.2 | Pilot | 0.00 | |
| 24.1 | Distantier | 0.00 | |
| 24.2 | Turbina ventilare | 0.00 | |
| 24.3 | Motor | 0.00 | |
| 24.4 | Placa fixare | 0.00 | |
| 25.1 | Bloc de control | 0.00 | |
| 25.2 | Soclu bloc control | 0.00 | |
| 25.3 | Transformator de aprindere | 0.00 | |
| 25.4.1 | Termostat | 0.00 | |
| 25.4.2 | Termostat | 0.00 | |
| 26.1 | Placa | 0.00 | |
| 26.2 | Capac | 0.00 | |
| 26.3.1 | Regulator de putere | 0.00 | |
| 26.3.2 | Panou control frontal | 0.00 | |
| 26.3.3 | Lampa semnalizare | 0.00 | |
| 26.3.4 | Lampa semnalizare | 0.00 | |
| 26.3.5 | Buton de deblocare | 0.00 | |
| 26.3.6 | Protectie | 0.00 | |
| 26.3.7 | Comutator | 0.00 | |
| 26.3.8 | Comutator | 0.00 | |
| Nr. | Cod piesa | Piese disponibile la vanzare | |
| 001 | P2020420 | Bloc de control Control box Siemens LAL 2.25 |
0.00 |
| 002 | P2080257 | Electrod de aprindere | 0.00 |
| 003 | P2090209 | Filtru CLU | 0.00 |
| 004 | P2090001 | Filtru pilot motorina | 0.00 |
| 005 | P2150063 | Turbina ventilare Fan wheel 630X106RX42 HL50-H8 P1025 |
0.00 |
| 006 | P2160097 | Presostat de aer KROM SCHRÖDER pressure switch DG150U-5 |
0.00 |
| 007 | P2160083 | Presostat de aer comprimat PMM10A 2-10 bar Pressure switch PMM10A 1/8"" NA 2-10 bar |
0.00 |
| 008 | P2160086 | Presostat gaz DUNGS GW150 A6 Dungs pressure switch GW150 A6 |
0.00 |
| 009 | P2170301 | Transformator de aprindere Ignition transformer FIDA MSP4I 8/20PM 230-50 |
0.00 |
| 010 | P21802A2 | Motor| 0.00 |
|
| 011 | P2180705 | Motor pompa pilot motorina Motor AEG EB95C28/2-84029 75W-230/50 |
0.00 |
| 012 | P2190408 | Electroventil L180 Solenoid valve for L180B31Z610A 1/2""230/50 |
0.00 |
| 013 | P2190451 | Electroventil L139 Solenoid valve for L139B08Z130A1/4""4,5 230/50 |
0.00 |
| 014 | P2190638 | Electroventil pilot motorina | 0.00 |
| 015 | P2190502 | Electrovana gaz Solenoid valve GAS EG 12 SR GMO 1/2""CE |
0.00 |
| 016 | P2340004 | Racord flexibil Flex G/N L=1500 1""M X 1""FC ST25 |
0.00 |
| 017 | P2340087 | Racord flexibil L=335 Flex A.P.L= 335 3/8""PTFE DN10 with connections |
0.00 |
| 018 | P234FX13 | Racord flexibil L=365 Flex A.P.L= 365 1/8""F X 1/8""F with connections |
0.00 |
| 019 | P234FX03 | Racord flexibil L=300 Flex A.P.L= 300 1/2""F X 1/2""F with connections |
0.00 |
| 020 | P234fx07 | Racord flexibil L=800 | 0.00 |
| 021 | P2440052 | Banda cama reglabila Industrial large adjusting cam foil |
0.00 |
| 022 | P2480004 | Servomecanism Siemens servocontrol SQM10.16502 |
0.00 |
| 023 | P2510003 | Fotorezistenta Photoresistor Siemens QRB1A-A070B70A2 |
0.00 |
| 024 | P2560026 | Termostat rezistenta (TR-TCI) Thermostat imit 50-200°C TR2 capillary L=2000 |
0.00 |
| 025 | P2560028 | Termostat TRS Thermostat imit reset 190° LS1 capillary L=2000 |
0.00 |
| 026 | P2570068 | Regulator de presiune Suntec TV Regulator TV1001 X Suntec pump""T"" |
0.00 |
| 027 | P25700c1 | Regulator de presiune | 0.00 |
| 028 | P2570112 | Modulator (numai complet modulante) Regulator MD RWF40.010A97 |
0.00 |
| 029 | P2590219 | Pompa Cucchi FMG40 | 0.00 |
| 030 | P2590130 | Pompa pilot motorina - Suntec AS47 Suntec pump AS47A 1536 1P 0560 |
0.00 |
| 031 | P2610335 | Duza | 0.00 |
| 032 | P2610003 | Duza pilot motorina Nozzle size 0,50 GPH - 60o |
0.00 |
| 033 | P2640053 | Pilot GPL | 0.00 |
| 034 | P2640053 | Pilot motorina | 0.00 |
| 035 | P2800085 | Regulator presiune gaz cu filtru | 0.00 |
| 036 | P2800116 | Regulator presiune aer cu filtru | 0.00 |
| 037 | P2800125 | Unitate regulator GPL | 0.00 |
| 038 | P30601A2 | Cap de ardere | 0.00 |
| 039 | P30910T6 | Tun de ardere standard | 0.00 |
| 040 | P30910K4 | Tun de ardere extins Blast tube PN1025-PBY1025 |
0.00 |
| 041 | P3500108 | Presostat de aer - ansamblu | 0.00 |
| 042 | P6050143 | Cablu de aprindere Ignition cable L=1100 P510/515/520 |
0.00 |
| 043 | P6100826 | Schema simbolica | 0.00 |
