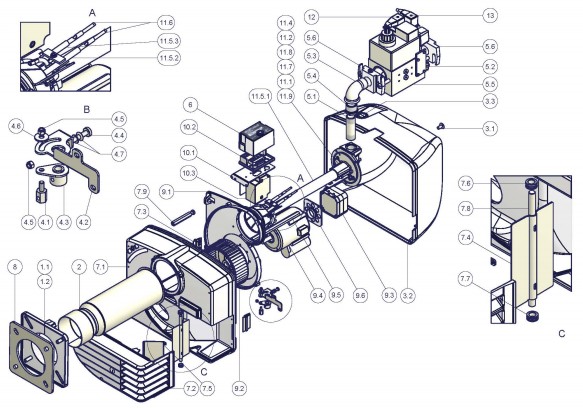

Desen explodat - Arzator pe gaz IDEA NG120 MTNSROA015

Piese IDEA NG120 Cibunigas
Poz. Cod piesa Denumire piesa Lei fara TVA
1.1   Semiflansa 0.00
1.2   Semiflansa 0.00
2   Tun de ardere 0.00
3.1   Surub fixare carcasa 0.00
3.2   Carcasa 0.00
3.3   Protectie cauciuc buton de deblocare 0.00
4.1   Surub blocare index 0.00
4.2   Blocare index 0.00
4.3   Bucsa 0.00
4.4   Surub 0.00
4.5   Piulita cu autoblocare 0.00
4.6   Saiba 0.00
4.7   Saiba 0.00
5.1   Surub prelungire 0.00
5.2   Priza presiune gaz 0.00
5.3   Racord cot 0.00
5.4   Reductie 0.00
5.5   Grup rampa 0.00
5.6   Flansa grup valva 0.00
6   Control box 0.00
7.1   Locas 0.00
7.2   Ansamblu bloc 0.00
7.3   Presetupa cu 4 cai 0.00
7.4   Ansamblu clapeta 0.00
7.5   Clapeta 0.00
7.6   Bucsa 0.00
7.7   Bucsa 0.00
7.8   Pin clapeta 0.00
7.9   Ax 0.00
8   Garnitura flansa 0.00
9.1   Placa motor 0.00
9.2   Turbina ventilator 0.00
9.3   Presostat de aer 0.00
9.4   Motor 0.00
9.5   Prezon fixare 0.00
9.6   Colier presostat aer 0.00
10.1   Brida 0.00
10.2   Panou bloc control 0.00
10.3   Transformator 0.00
11.1   Piulita 0.00
11.2   Presetupa 0.00
11.3   Admisie presiune gaz 0.00
11.4   Vizor inspectie 0.00
11.5.1   Tun de ardere 0.00
11.5.2   Electrod de detectie 0.00
11.5.3   Electrod de aprindere 0.00
11.6   Cablu de aprindere 0.00
11.7   Surub 0.00
11.8   Piulita 0.00
11.9   Flansa 0.00
12   Borna 0.00
13   Borna 0.00

Nr. Cod piesa Piese disponibile la vanzare
001 P1011807 Carcasa
Red plastic casing IDEA NG140		 0.00
002 P2020466 Bloc de control (o treapta)
Control box Siemens LME 11.330A2		 0.00
003 P2080108 Electrod de detectie
Detection electrode HE-S3-S5-S10-S18 4mm		 0.00
004 P2080234 Electrod de masa
Earth electrode NG140/550-P20/520 L=78		 0.00
005 P2080218 Electrod de aprindere
Ignition electrode HE-S3-S5-S10-S18 4mm		 0.00
006 P2110031 Garnitura
Isolcart gasket IDEA140/200-HS10/18		 0.00
007 p2150077 Turbina ventilator 0.00
008 P2160053 Presostat de aer
Dungs air pressure switch LGW10 A2		 0.00
009 P2170233 Transformator Danfoss
Ignition transformer Danfoss EBI 1P (front) 052F00		 0.00
010 P2170138 Transformator Cofi
Ignition transformer Cofi TRK2-30P		 0.00
011 P2180296 Motor mod. AACO
Motor AACO 60.2.180.32M+C5 180W230/50		 0.00
012 P2180715 Motor mod. AEG
Motor AEG EB95C52/2-96383 180W-230/50		 0.00
013 P2190339 Grup rampa gaz Dungs MB-DLE 405 (1/2")
Multibloc MBDLE 405 B01S20 1/2"		 0.00
014 P2191604 Kit control etanseitate (optional)
Gas proving system VPS 504/02 230/50 without plug		 0.00
015 P30900H4 Tun de ardere Standard-S
Blast tube NG140 short IDEA L=240		 0.00
016 P30900H5 Tun de ardere Extins-L
Blast tube NG140 long IDEA L=340		 0.00
017 P30600M0 Cap de ardere (gaz metan) Standard-S
Complete combustion head NG140 BS		 0.00
018 P30600M1 Cap de ardere (gaz metan) Extins-L
Complete combustion head NG140 BL		 0.00
019 P30600M4 Cap de ardere (GPL) Standard-S
Complete combustion head L.P.G. LG140 BS		 0.00
020 P30600M5 Cap de ardere (GPL) Extins-L
Complete combustion head L.P.G. LG140 BL		 0.00
021 P3501847 Cap de ardere cu electrozi Standard-S
Combustion head NG140..S C/with electrodes		 0.00
022 P3501848 Cap de ardere cu electrozi Extins-L
Combustion head NG140..L C/with electrodes		 0.00
023 P3501857 Cap de ardere cu electrozi(GPL) Standard-S
Combustion head LG140..S L.P.G. C/with electrodes		 0.00
024 P3501858 Cap de ardere cu electrozi(GPL) Extins-L
Combustion head LG140..L L.P.G. C/with electrodes		 0.00
025 P6050154 Cablu de aprindere
Ignition cable L= 650 LO/NG140-200		 0.00
026 P6050211 Cablu de detectie
Detection cable L= 540 S3-S5/10/18		 0.00
