>> arzatoare pe gaz >> novanta-cinquecento 480-8000kw >> r515a

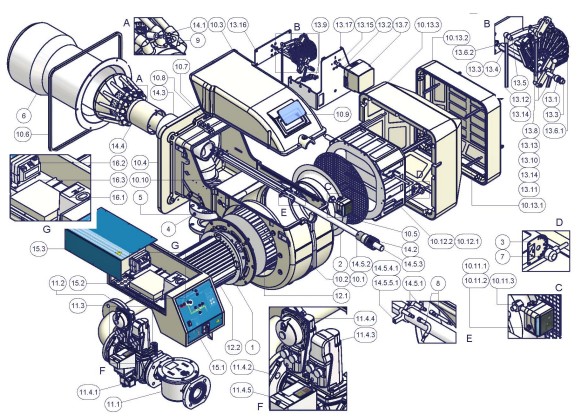

desen explodat arz.r515ammdsroa150ea-5.2 mw | |||
| |||
| Poz. | Cod piesa | Denumire piesa | Lei fara TVA |
|---|---|---|---|
| 1 | admisie aer | - | |
| 2 | carcasa arzator | - | |
| 2.1 | carcasa demontabila | - | |
| 3 | garnitura | - | |
| 4 | conducta presostat | - | |
| 5 | priza presiune | - | |
| 6 | vizor | - | |
| 7.1 | disc de sectionare | - | |
| 7.2 | ax disc | - | |
| 7.3 | vana gaz fluture | - | |
| 8 | tun de ardere | - | |
| 9 | presostat de aer | - | |
| 10.1 | grila admisie | - | |
| 10.2 | clapeta interna | - | |
| 10.3 | clapeta externa | - | |
| 10.4 | admisie aer | - | |
| 10.5 | ax scurt clapeta | - | |
| 10.6 | ax lung clapeta | - | |
| 10.7.1 | distantier | - | |
| 10.7.2 | mecanism cu parghii complet montat | - | |
| 10.7.3 | cama reglabila | - | |
| 10.7.4 | servomecanism | - | |
| 10.7.5 | brida servomecanism | - | |
| 11 | conector negru/rosu | - | |
| 12.1 | filtru de gaz | - | |
| 12.2 | racord cot | - | |
| 12.3 | conducta filetata | - | |
| 12.4 | conducta cu flansa | - | |
| 12.5.1 | racord cot | - | |
| 12.5.2 | niplu | - | |
| 12.5.3 | presostat gaz de minim | - | |
| 12.5.4 | grup vana gaz | - | |
| 12.5.5 | servomecanism vana gaz | - | |
| 12.5.6 | servomecanism vana gaz | - | |
| 12.5.7 | bloc control etanseitate | - | |
| 12.5.8 | conexiune directa | - | |
| 12.5.9 | placa suport bloc control etanseitate | - | |
| 13.1 | turbina | - | |
| 13.2 | motor ventilare | - | |
| 14.1 | electrod de detectie | - | |
| 14.2 | o-ring | - | |
| 14.3 | colector gaz | - | |
| 14.4 | cap de ardere | - | |
| 14.5.1 | set electrozi | - | |
| 14.5.2 | piulita inelara | - | |
| 14.5.3 | bucsa de reglare | - | |
| 14.5.4 | suport anterior tija | - | |
| 14.5.5 | suport posterior tija | - | |
| 14.5.6 | tija | - | |
| 15.1.1 | modulator arzator | - | |
| 15.2 | placa electrica | - | |
| 15.3 | capac | - | |
| Nr. | Cod piesa | Piese disponibile la vanzare | |
| 001 | p2020474 | bloc control - siemens lmv20 | 0 |
| 002 | P2080266 | ELECTROD DE APRINDERE / IGNITION ELECTRODE P/HP91-525 ""2002"" - COUPLE | 436.59 |
| 003 | p2080118 | electrod de detectie | 0 |
| 004 | p2090119 | filtru gaz - rp 2" | 0 |
| 005 | p2090117 | filtru gaz - dn65 | 0 |
| 006 | p2090112 | filtru gaz - dn80 | 0 |
| 007 | p2090113 | filtru gaz - dn100 | 0 |
| 008 | P2150030 | TURBINA VENTILARE / FAN WHEEL 360X135X38 P515 GAS E MISTI | 1231.35 |
| 009 | P2160065 | PRESOSTAT DE AER / KROM SCHRÖDER PRESSURE SWITCH DG 50U-5 | 253.56 |
| 010 | P2160076 | PRESOSTAT GAZ - DUNGS GW50 A5 / DUNGS GAS PRESSURE SWITCH GW 50 A5 | 190.17 |
| 011 | P2160077 | PRESOSTAT GAZ - DUNGS GW150 A5 / DUNGS GAS PRESSURE SWITCH GW150 A5 | 190.17 |
| 012 | P2160087 | PRESOSTAT GAZ - DUNGS GW500 A6 / DUNGS GAS PRESSURE SWITCH GW500 A6 | 291.06 |
| 013 | P2160089 | PRESOSTAT GAZ - DUNGS GW500 A5 / DUNGS GAS PRESSURE SWITCH GW500 A5 | 311.14 |
| 014 | P2170302 | TRANSFORMATOR DE APRINDERE / IGNITION TRANSFORMER FIDA MSP4I 10/20CM 230-50 | 242.99 |
| 015 | P2180209 | MOTOR / MOTOR 132M-2P-B5 11 KW 230/400/50 | 4440.45 |
| 016 | P2190171 | GRUP VANE GAZ - RP2" - SIEMENS VGD20.. / DOUBLE GAS VALVES VGD20.503 2"" | 1792.34 |
| 017 | P2190172 | GRUP VANE GAZ - DN65 - SIEMENS VGD40.. / DOUBLE GAS VALVES VGD40.065L DN 65 | 8.81 |
| 018 | P2190169 | GRUP VANE GAZ - DN80 - SIEMENS VGD40.. / DOUBLE GAS VALVES VGD40.080L DN 80 | 11.16 |
| 019 | P2190174 | GRUP VANE GAZ - DN100 - SIEMENS VGD40.. / DOUBLE GAS VALVES VGD40.100L DN100 | 29.61 |
| 020 | P2190181 | SERVOMECANISM VANA GAZ SKP15 / ACTUATOR SKP15.000E2 | 2034.80 |
| 021 | P2190183 | SERVOMECANISM VANA GAZ SKP25 / ACTUATOR SKP25.003E2 | 2747.94 |
| 022 | P21903M5 | GRUP VANE GAZ - RP2" - DUNGS MBC1200SE / MULTIBLOC MBC1200 SE S82 2"" | 12.18 |
| 023 | P21903M6 | GRUP VANE GAZ - DN65 - DUNGS MBC1900SE / MULTIBLOC MBC1900 SE-65 S82 DN65 | 17.81 |
| 024 | P21903M7 | GRUP VANE GAZ - DN80 - DUNGS MBC3100SE / MULTIBLOC MBC3100 SE-80 S82 DN80 | 23.02 |
| 025 | P21903M8 | GRUP VANE GAZ - DN100 - DUNGS MBC5000SE / MULTIBLOC MBC5000 SE100 S82 DN100 | 39.55 |
| 026 | P2480092 | SERVOMECANISM VANA FLUTURE - SIEMENS SQM33.410A9-1.2NM / SIEMENS SERVOCONTROL SQM33.410A9-1.2NM | 1730.54 |
| 027 | P2480094 | SERVOMECANISM CLAPETA - SIEMENS SQM33.510A9-3NM / SIEMENS SERVOCONTROL SQM33.510A9-3NM | 1992.01 |
| 028 | P2570112 | MODULATOR ARZATOR / REGULATOR MD RWF40.010A97 | 3865.18 |
| 029 | P30600R5 | CAP DE ARDERE / COMPLETE COMBUSTION HEAD P515A ""2007"" | 11.16 |
| 030 | p30910r2 | tun de ardere | 0 |
| 031 | P6050108 | CABLU DE APRINDERE / IGNITION CABLE L= 600 P20L-P60S/L | 31.70 |
| 032 | P6050215 | CABLU DE DETECTIE / DETECTION CABLE L=1100 P90/520 X SCHEDA | 19.02 |
