>> arzatoare pe gaz >> tecnopress 160-2300kw >> p73a

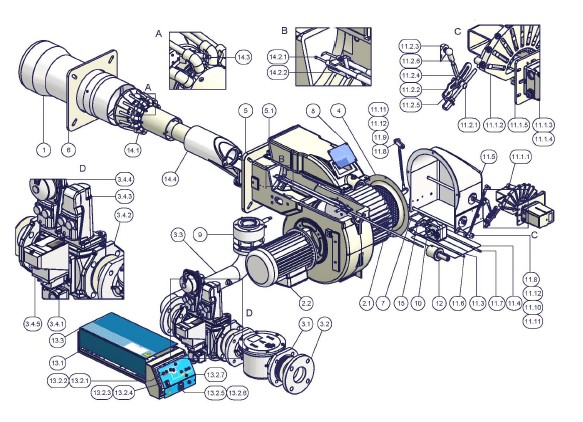

desen explodat arz.p73amabsroa150 - 2300 kw

Poz. Cod piesa Denumire piesa Lei fara TVA
1   tub de ardere standard -
2.1   turbina ventilator -
2.2   motor -
3.1   filtru gaz -
3.2   flansa -
3.3   conducta cu flanse -
3.4.1   presostat de gaz -
3.4.2   locas vana gaz -
3.4.3   servomecanism "skp" -
3.4.4   servomecanism "skp" -
3.4.5   bloc control etanseitate -
4   con admisie aer -
5   camera interioara arzator -
5.1   carcasa -
6   garnitura fixare pe cazan -
7   conducta presostat aer -
8   vizor inspectie -
9   vana fluture gaz -
10   presostat de aer -
11.1.1   mecanism -
11.1.2   cama reglare -
11.1.3   servomecanism -
11.1.4   ax servomecanism -
11.1.5   clema fixare -
11.2.1   surubu -
11.2.2   cama -
11.2.3   mecanism -
11.2.4   parghie -
11.2.5   articulatie -
11.2.6   articulatie -
11.3   clema admisie aer -
11.4   clema admisie aer -
11.5   admisie aer -
11.6   ax clapeta -
11.7   ax clapeta -
11.8   mecanism -
11.9   parghie -
11.10   parghie -
11.11   articulatie -
11.12   articulatie -
12   rozeta reglare cap -
13.1   placa -
13.2.1   lampa semnalizare -
13.2.2   lampa semnalizare -
13.2.3   buton reset blocare -
13.2.4   protectie -
13.2.5   intrerupator -
13.2.6   siguranta fuzibila -
13.2.7   panou control frontal -
13.3   carcasa -
14.1   cap de ardere standard -
14.2.1   electrod de aprindere -
14.2.2   suport diuza -
14.3   electrod de detectie -
14.4   colector gaz -
15   conector -

Nr. Cod piesa Piese disponibile la vanzare
001 P2020468 BLOC DE CONTROL - SIEMENS LME / CONTROL BOX SIEMENS LME 22.331A2 859.73
002 P2080278 ELECTROD DE APRINDERE / IGNITION ELECTRODE P/HP73A AB/PR/MD - COUPLE 431.57
003 P2080114 ELECTROD DE MASA / DETECTION ELECTRODE P73A 6MM 69.73
004 p2090117 filtru gaz - dn65 0
005 p2090118 filtru gaz - dn80 0
006 P2110033 GARNITURA / ISOLCART GASKET P65/72-PG70/80 69.73
007 P2150068 TURBINA VENTILATOR / FAN WHEEL 280X145X24 P73-HP/KP73 702.51
008 P2160065 PRESOSTAT DE AER / KROM SCHRÖDER PRESSURE SWITCH DG 50U-5 253.56
009 P2160076 PRESOSTAT DE GAZ - DUNGS GW 50 A5 / DUNGS GAS PRESSURE SWITCH GW 50 A5 190.17
010 P2160077 PRESOSTAT DE GAZ - DUNGS GW 150 A5 / DUNGS GAS PRESSURE SWITCH GW150 A5 190.17
011 P2170128 TRANSFORMATOR DE APRINDERE / IGNITION TRANSFORMER X GAS BURNER 281.02
012 p218025601 motor 0
013 P2191604 BLOC CONTROL ETANSEITATE / GAS PROVING SYSTEM VPS 504/02 230/50 WITHOUT PLUG 2186.95
014 P21903N2 GRUP RAMPA - RP12 - DUNGS MB-DLE420 / MULTIBLOC MBDLE 420 B01S50 2"" 7.55
015 P2190172 GRUP RAMPA - DN65 - SIEMENS VGD40 / DOUBLE GAS VALVES VGD40.065L DN 65 8.81
016 P2190169 GRUP RAMPA - DN80 - SIEMENS VGD40 / DOUBLE GAS VALVES VGD40.080L DN 80 11.16
017 P2190181 VANA CU SERVOMECANISM SKP15 / ACTUATOR SKP15.000E2 2034.80
018 P2190183 VANA CU SERVOMECANISM SKP25 / ACTUATOR SKP25.003E2 2747.94
019 P2480042 SERVOMECANISM - BERGER STA (2 TREPTE) / BERGER SERVOCONTROL STA 6 B3.41/6 3N32L 1036.42
020 P2480053 SERVOMECANISM - BERGER STA (PROGRESIVE SI COMPLET MOD.) / BERGER SERVOCONTROL STA12 B3.41/6 3N32L 1226.59
021 p24800a3 servomecanism - siemens sqn72 (2 trepte) 0
022 p24800a4 servomecanism - siemens sqn72 (progresive si complet mod.) 0
023 P2570112 MODULATOR ARZATOR (NUMAI LA COMPLET MODULANTE) / REGULATOR MD RWF40.010A97 3865.18
024 P30600L9 CAP DE ARDERE / COMPLETE COMBUSTION HEAD P73A ""2002"" 7.17
025 P30910P8 TUN DE ARDERE STANDARD-S / BLAST TUBE P/HP/KP73A L=550 1740.05
026 p3500104 presostat de aer (ass.y) 0
027 P6050108 CABLU DE APRINDERE / IGNITION CABLE L= 600 P20L-P60S/L 31.70
028 P6050205 CABLU DE DETECTIE / DETECTION CABLE L= 900 P20L-P60S/L 25.36
029 P6100550 PLACA CIRCUIT IMPRIMAT / PRINTED CIRCUIT BOARD P60/72/73 550.22
