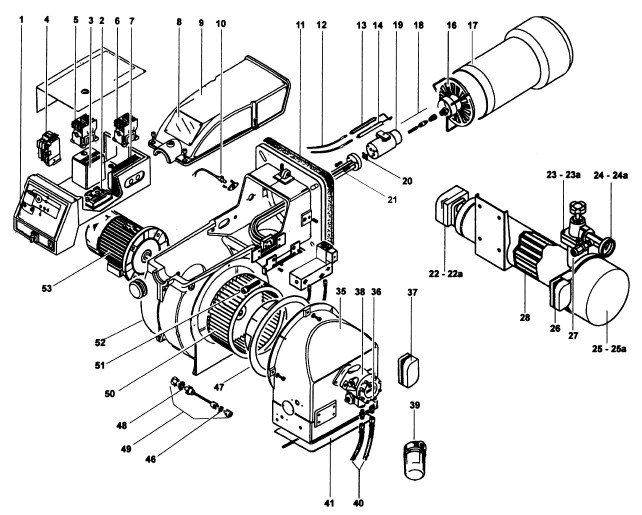

desen explodat arz.pn30ntnsroa- 383 kw

Poz. Cod piesa Denumire piesa Lei fara TVA
1 p659.03… panou electric de comanda 0
2 p2030409 placa de componente 0
3 P2020445 BLOC DE CONTROL / CONTROL BOX SIEMENS LOA 24.171B2BC 301.09
4 p6140001 releu termic motor 0
5 p6130001 contactor motor de ventilare 0
6 p6130001 contactor rezistenta 0
7 P2170005 TRANSFORMATOR DE APRINDERE / IGNITION TRANSFORMER BRAHMA T 8 230V-50HZ 471.72
8 P2420002 VIZOR / PLEX VIEWING GLASS 84,5X53 P20/30/45/60 25.36
9 p2210103 capac 0
10 P2510003 FOTOREZISTENTA LANDIS / PHOTORESISTOR SIEMENS QRB1A-A070B70A2 98.78
11 P2110004 GARNITURA / ISOLCART GASKET P20/30-PG25/30 31.70
12 P6050129 CABLU DE APRINDERE / IGNITION CABLE L=1000 PGR-PNR510/15/20 25.36
13 P2080206 ELECTROD LUNG / IGNITION ELECTRODE LONG MFP4/6-PG-PGR-PNR 57.06
14 P2080205 ELECTROD SCURT / IGNITION ELECTRODE SHORT MFP4/6-PG/PN30/91 57.06
15 p261.. duza 0
16 P3060173 CAP DE APRINDERE / COMPLETE COMBUSTION HEAD DIFF. PG/PN 30 AB ZN 211.31
17 P3090033 TUN DE ARDERE STANDARD / BLAST TUBE PG30-PN30 L=200 609.17
17 P3090035 TUN DE ARDERE EXTINS / BLAST TUBE PG30L-PN30L L=390 781.12
18 P2370020 KIT PISTON SI ARC / NOZZLE HOLDER PISTON KIT PN1/91 C45 291.06
19 P3020084 SUPORT DUZA CU PISTOANE / NOZZLE HOLDER PN30/91E- C45 NEW 2110.87
20 P2250033 INEL O 2021 / O-RING 2021 VITON 6.33
21 p2860123 ansamblu tun pt tun de ardere standard 0
21 p2860124 ansamblu tun pt tun de ardere extins 0
22 p2560002 bi-termostat (trs + tcn) 0
22a P3160001 TEACA BI-TERMOSTAT / TWIN THERMOSTAT SHEATH L=165 ZN. 110.41
23 p2090210 filtru pt preincalzire autocuratitor 0
23 p2090218 cartus filtru preincalzire (clu fluid) 0
23a p2110036 garnitura filtru preincalzire 0
24 P2450001 TERMOMETRU / HEAVY OIL THERMOMETER SCALE 0-200°C 69.73
24a P3160002 TEACA TERMOMETRU / THERMOMETER SHEATH 6.33
25 p2210013 capac protectie rezistenta 0
25a P2250004 INEL O REZISTENTA / O-RING 181 VITON HEAVY OIL PRE-HEATER RESISTOR 2,5 50.70
26 p2560003 termostat rezistenta (tr) 0
27 P2190627 VANA CONTROL / CIB ANTIGAS VALVE 3/8X1/4X5 FF 692.70
28 P6060011 REZISTENTA PREINCALZIRE CLU / HEAVY OIL PRE-HEATER RESISTOR 2,4 KW PN1/3-N30 2315.31
34 P6060015 CARTUS REZISTENTA 55W / HEAVY OIL CARTRIDGE RESISTOR 55W 230V. 336.23
35 p2380104 admisie aer 0
36 P6060010 CARTUS REZISTENTA 80W / HEAVY OIL CARTRIDGE RESISTOR 80W 230V. 216.58
37 p2560018 termostat tci consens 0
38 P2590104 POMPA CLU FLUID / SUNTEC PUMP E4 NC 1001 6P 1673.48
38 P2590115 POMPA CLU ECOLOGIC/DENS / SUNTEC PUMP E4 NC 1069 7P 2220.22
39 P2090207 FILTRU PT CLU ECOLOGIC/DENS / LARGE HEAVY OIL FILTER GA70501/0,3 1"" 746.73
39 P2090202 FILTRU PT CLU FLUID / SMALL HEAVY OIL FILTER GA70101/0,3 1"" 276.01
40 P2340003 RACORDURI FLEXIBIL CLU FLUID / FLEX G/N L=1500 3/4""M X 3/4""FC ST19 126.77
40 P2340004 RACORDURI FLEXIBIL CLU ECOLOGIC/DENS / FLEX G/N L=1500 1""M X 1""FC ST25 179.60
41 p2140005 clapeta aer 0
46 P2540113 INEL CUPLARE LA POMPA / RING AR FOR COUPLING D.40 SIT-AR19/24 25.36
47 p2040001 conducta aer 0
48 P2540113 INEL CUPLARE LA TURBINA / RING AR FOR COUPLING D.40 SIT-AR19/24 25.36
49 P2540111 CUPLAJ COMPLET / COUPLING COMPLETE PN30-N30-PN1-PN3 776.20
50 P2150006 TURBINA VENTILARE / FAN WHEEL 200X80 P1-P3-MFP4-MFP5 179.60
51 P2320026 SURUB REGLARE SUPORT DUZA/CAP / NOZZLE-HOLDER ADJUSTING SCREW 60.00
53 P2180008 MOTOR / MOTOR 3/3030 0,75KW 230/400/50 1264.63
