>> arzatoare low nox >> seria idea 21-490kw >> idea ngx120

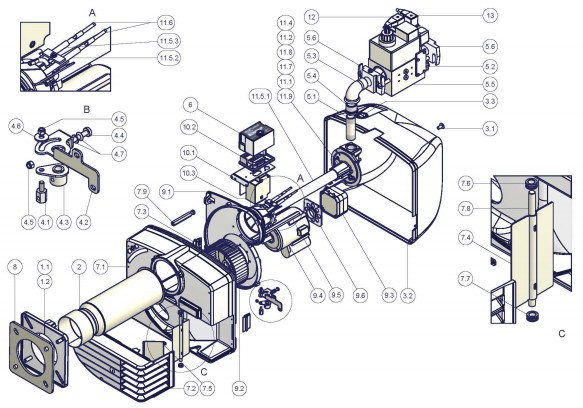

desen explodat arz. ngx120tn - 120kw | |||
| |||
| Poz. | Cod piesa | Denumire piesa | Lei fara TVA |
|---|---|---|---|
| 1.1 | semiflansa | - | |
| 1.2 | semiflansa | - | |
| 2 | tun de ardere | - | |
| 3.1 | surub fixare carcasa | - | |
| 3.2 | carcasa | - | |
| 3.3 | protectie cauciuc buton de deblocare | - | |
| 4.1 | surub blocare index | - | |
| 4.2 | blocare index | - | |
| 4.3 | bucsa | - | |
| 4.4 | surub | - | |
| 4.5 | piulita cu autoblocare | - | |
| 4.6 | saiba | - | |
| 4.7 | saiba | - | |
| 5.1 | surub prelungire | - | |
| 5.2 | priza presiune gaz | - | |
| 5.3 | racord cot | - | |
| 5.4 | reductie | - | |
| 5.5 | grup rampa | - | |
| 5.6 | flansa grup valva | - | |
| 6 | control box | - | |
| 7.1 | locas | - | |
| 7.2 | ansamblu bloc | - | |
| 7.3 | presetupa cu 4 cai | - | |
| 7.4 | ansamblu clapeta | - | |
| 7.5 | clapeta | - | |
| 7.6 | bucsa | - | |
| 7.7 | bucsa | - | |
| 7.8 | pin clapeta | - | |
| 7.9 | ax | - | |
| 8 | garnitura flansa | - | |
| 9.1 | placa motor | - | |
| 9.2 | turbina ventilator | - | |
| 9.3 | presostat de aer | - | |
| 9.4 | motor | - | |
| 9.5 | prezon fixare | - | |
| 9.6 | colier presostat aer | - | |
| 10.1 | brida | - | |
| 10.2 | panou bloc control | - | |
| 10.3 | transformator | - | |
| 11.1 | piulita | - | |
| 11.2 | presetupa | - | |
| 11.3 | admisie presiune gaz | - | |
| 11.4 | vizor inspectie | - | |
| 11.5.1 | tun de ardere | - | |
| 11.5.2 | electrod de detectie | - | |
| 11.5.3 | electrod de aprindere | - | |
| 11.6 | cablu de aprindere | - | |
| 11.7 | surub | - | |
| 11.8 | piulita | - | |
| 11.9 | flansa | - | |
| 12 | borna | - | |
| 13 | borna | - | |
| Nr. | Cod piesa | Piese disponibile la vanzare | |
| 001 | P1011807 | CARCASA / RED PLASTIC CASING IDEA NG140 | 147.91 |
| 002 | P2020466 | BLOC DE CONTROL (O TREAPTA) / CONTROL BOX SIEMENS LME 11.330A2 | 569.87 |
| 003 | P2080108 | ELECTROD DE DETECTIE / DETECTION ELECTRODE HE-S3-S5-S10-S18 4MM | 44.37 |
| 004 | P2080234 | ELECTROD DE MASA / EARTH ELECTRODE NG140/550-P20/520 L=78 | 12.68 |
| 005 | P2080218 | ELECTROD DE APRINDERE / IGNITION ELECTRODE HE-S3-S5-S10-S18 4MM | 44.37 |
| 006 | P2110031 | GARNITURA / ISOLCART GASKET IDEA140/200-HS10/18 | 19.02 |
| 007 | p2150077 | turbina ventilator | 0 |
| 008 | P2160053 | PRESOSTAT DE AER / DUNGS AIR PRESSURE SWITCH LGW10 A2 | 206.02 |
| 009 | P2170233 | TRANSFORMATOR DANFOSS / IGNITION TRANSFORMER DANFOSS EBI 1P (FRONT) 052F00 | 142.63 |
| 010 | P2170138 | TRANSFORMATOR COFI / IGNITION TRANSFORMER COFI TRK2-30P | 231.41 |
| 011 | P2180296 | MOTOR MOD. AACO / MOTOR AACO 60.2.180.32M+C5 180W230/50 | 451.65 |
| 012 | P2180715 | MOTOR MOD. AEG / MOTOR AEG EB95C52/2-96383 180W-230/50 | 416.52 |
| 013 | P2190339 | GRUP RAMPA DUNGS MB-DLE 405(1/2") / MULTIBLOC MBDLE 405 B01S20 1/2"" | 2006.28 |
| 014 | P2191604 | KIT CONTROL ETANSEITATE (OPTIONAL) / GAS PROVING SYSTEM VPS 504/02 230/50 WITHOUT PLUG | 2186.95 |
| 015 | p30900n2 | tun de ardere (s*0 | |
| 016 | p30900n5 | tun de ardere (l*0 | |
| 017 | P30600M8 | CAP DE ARDERE (LOW NOX) (S / COMPLETE COMBUSTION HEAD DIFF. NGX120 SHORT*0.00 | |
| 018 | P30600M9 | CAP DE ARDERE (LOW NOX) (L / COMPLETE COMBUSTION HEAD DIFF. NGX120 LONG*0.00 | |
| 019 | P3501853 | CAP DE ARDERE CU ELECTROZI LOW NOX (S / COMBUSTION HEAD NGX120..S C/WITH ELECTRODES*0.00 | |
| 020 | P3501854 | CAP DE ARDERE CU ELECTROZI LOW NOX (L / COMBUSTION HEAD NGX120..L C/WITH ELECTRODES*0.00 | |
| 021 | P6050154 | CABLU DE APRINDERE / IGNITION CABLE L= 650 LO/NG140-200 | 19.02 |
| 022 | P6050211 | CABLU DE DETECTIE / DETECTION CABLE L= 540 S3-S5/10/18 | 19.02 |
