>> arzatoare mixte gaz-motorina >> seria tecnopress 85-2300kw >> tecnopress hp20

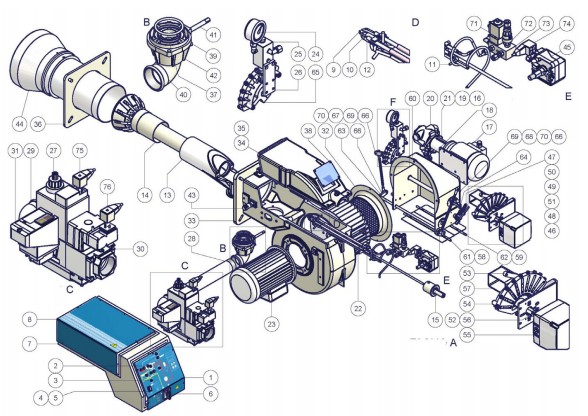

desen explodat arz.hp20mgabsroa025 | |||
| |||
| Poz. | Cod piesa | Denumire piesa | Lei fara TVA |
|---|---|---|---|
| 1 | panou control frontal | - | |
| 2 | lampa de semnalizare | - | |
| 3 | lampa de semnalizare | - | |
| 4 | buton de deblocare | - | |
| 5 | protectie | - | |
| 6 | comutator | - | |
| 7 | panou control frontal | - | |
| 8 | capac | - | |
| 9 | electrod de aprindere | - | |
| 10 | duza | - | |
| 11 | cablu de aprindere | - | |
| 12 | suport duza | - | |
| 13 | colector gaz | - | |
| 14 | cap de ardere standard | - | |
| 15 | rozeta de reglare | - | |
| 16 | grila | - | |
| 17 | motor | - | |
| 18 | placa suport | - | |
| 19 | cuplaj | - | |
| 20 | pompa | - | |
| 21 | brida | - | |
| 22 | turbina ventilare | - | |
| 23 | motor | - | |
| 24 | manometru | - | |
| 25 | regulator de presiune | - | |
| 26 | brida | - | |
| 27 | grup vane gaz cu regulator | - | |
| 28 | conducta gaz filetata | - | |
| 29 | racord cot | - | |
| 30 | flansa | - | |
| 31 | bloc control etanseitate | - | |
| 32 | con admisie aer | - | |
| 33 | caseta arzator | - | |
| 34 | carcasa | - | |
| 35 | prelungire carcasa | - | |
| 36 | garnitura generator | - | |
| 37 | inel etansare "o" | - | |
| 38 | vizor | - | |
| 39 | priza de presiune | - | |
| 40 | racord cot | - | |
| 41 | ax obturator | - | |
| 42 | vana fluture gaz | - | |
| 43 | fotocelula | - | |
| 44 | tun de ardere standard | - | |
| 45 | presostat de aer | - | |
| 46 | surub | - | |
| 47 | cama | - | |
| 48 | mecanism | - | |
| 49 | tija | - | |
| 50 | articulatie | - | |
| 51 | articulatie | - | |
| 52 | bucsa | - | |
| 53 | mecanism | - | |
| 54 | cama reglabila | - | |
| 55 | servomecanism | - | |
| 56 | ax servomecanism | - | |
| 57 | brida | - | |
| 58 | clapeta admisie aer | - | |
| 59 | clapeta admisie aer | - | |
| 60 | admisie aer | - | |
| 61 | ax jaluzea | - | |
| 62 | ax jaluzea | - | |
| 63 | ax obturator | - | |
| 64 | ax cama reglabila | - | |
| 65 | cama reglabila | - | |
| 66 | mecanism | - | |
| 67 | parghie | - | |
| 68 | parghie | - | |
| 69 | articulatie | - | |
| 70 | articulatie | - | |
| 71 | electroventil | - | |
| 72 | vana de sectionare | - | |
| 73 | colector motorina | - | |
| 74 | conector | - | |
| 75 | conector | - | |
| 76 | conector | - | |
| Nr. | Cod piesa | Piese disponibile la vanzare | |
| 001 | P2020468 | BLOC DE CONTROL / CONTROL BOX SIEMENS LME 22.331A2 | 859.73 |
| 002 | P2080212 | ELECTROD DE APRINDERE / IGNITION ELECTRODE HP20MG-MIX1/2/3 D.6MM | 38.04 |
| 003 | P2090025 | FILTRU MOTORINA / LIGHT OIL FILTER 3/8"" 20201/PL | 104.59 |
| 004 | P2110004 | GARNITURA / ISOLCART GASKET P20/30-PG25/30 | 31.70 |
| 005 | P2150006 | TURBINA VENTILARE / FAN WHEEL 200X80 P1-P3-MFP4-MFP5 | 179.60 |
| 006 | P2160065 | PRESOSTAT DE AER / KROM SCHRÖDER PRESSURE SWITCH DG 50U-5 | 253.56 |
| 007 | P2160076 | PRESOSTAT DE MINIM DE GAZ / DUNGS GAS PRESSURE SWITCH GW 50 A5 | 190.17 |
| 008 | P2170106 | TRANSFORMATOR DE APRINDERE / IGNITION TRANSFORMER COFI 1020 W/B.230V-50HZ | 291.06 |
| 009 | P2180704 | MOTOR VENTILARE / MOTOR AEG EB130C 56/2 370W-230/50 | 692.70 |
| 010 | P2180715 | MOTOR POMPA / MOTOR AEG EB95C52/2-96383 180W-230/50 | 416.52 |
| 011 | P2190341 | GRUP VANE GAZ - RP1 - DUNGS MB-DLE 410 / MULTIBLOC MBDLE 410 B01S20 1"" | 2852.54 |
| 012 | P2191604 | BLOC CONTROL ETANSEITATE / GAS PROVING SYSTEM VPS 504/02 230/50 WITHOUT PLUG | 2186.95 |
| 013 | P2340001 | RACORDURI FLEXIBILE L=1000 / FLEX G/N L=1000 3/8""M X 1/4""FC ST 6 | 31.70 |
| 014 | P2480057 | SERVOMECANISM - BERGER STA 4.5 / BERGER SERVOCONTROL STA4,5B0,37/6 3N30L | 658.31 |
| 015 | P2480042 | SERVOMECANISM - BERGER STA 6 / BERGER SERVOCONTROL STA 6 B3.41/6 3N32L | 1036.42 |
| 016 | P2510001 | SONDA UV / PHOTOCELL SIEMENS QRA 2 (1) | 1079.21 |
| 017 | P2510114 | ADAPTOR SONDA UV - SIEMENS AGQ.. / PHOTOCELL ADAPTER AGQ3.1A27 | 830.24 |
| 018 | P2540055 | CUPLAJ MOTOR-POMPA / PLASTIC COUPLING FOR AEG MOTOR (COD.051936) | 6.33 |
| 019 | P2590153 | POMPA SUNTEC AT2 65A / SUNTEC PUMP AT2 65A 95772P0510 | 1041.18 |
| 020 | P2610002 | DUZA / NOZZLE SIZE 0,75 / 6,00 GPH - 45° | 50.70 |
| 021 | P3060260 | CAP DE ARDERE STANDARD / COMPLETE COMBUSTION HEAD PREMIXING HP20 MG AB S | 4217.00 |
| 022 | P3060261 | CAP DE ARDERE EXTINS / COMPLETE COMBUSTION HEAD PREMIXING HP20 MG AB L | 4445.20 |
| 023 | P3090040 | TUN DE ARDERE STANDARD / BLAST TUBE HP20MG....S - P1M25/2G BS | 928.50 |
| 024 | P3090041 | TUN DE ARDERE EXTINS / BLAST TUBE HP20MG....L - P1M25/2G BL | 913.77 |
| 025 | p6050010 | cablu de aprindere standard | 0 |
| 026 | P6050109 | CABLU DE APRINDERE EXTINS / IGNITION CABLE L= 600 PG25/30L-PG60S | 25.36 |
| 027 | P6100551 | PLACA CIRCUIT IMPRIMAT / PRINTED CIRCUIT BOARD HP60/73 AB | 844.97 |
