>> arzatoare pe motorina >> seria idea 14-560kw >> idea lo140

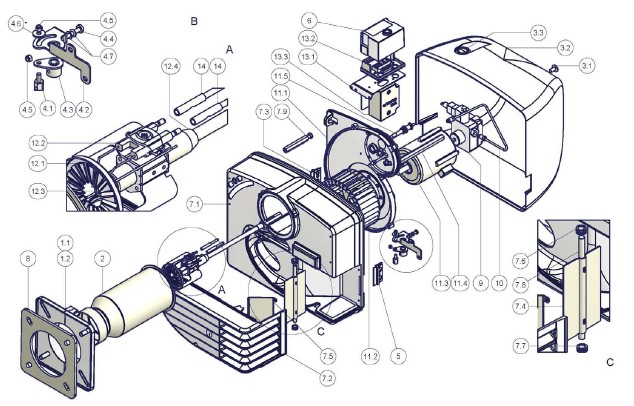

desen explodat arz. lo140gtnlroa -160kw | |||
| |||
| Poz. | Cod piesa | Denumire piesa | Lei fara TVA |
|---|---|---|---|
| 1.1 | flansa (superioara) | - | |
| 1.2 | flansa (inferioara) | - | |
| 2 | tun de ardere | - | |
| 3.1 | surub fixare carcasa | - | |
| 3.2 | carcasa | - | |
| 3.3 | protectie cauciuc buton de deblocare | - | |
| 4.1 | surub fixare index | - | |
| 5 | presetupa 2-cai | - | |
| 6 | bloc de control | - | |
| 7.1 | caseta | - | |
| 7.2 | admisie aer | - | |
| 7.3 | presetupa 4-cai | - | |
| 7.4 | atenuator aer | - | |
| 7.5 | clapeta de aer | - | |
| 7.6 | bucsa | - | |
| 7.7 | bucsa | - | |
| 7.8 | ax clapeta aer | - | |
| 7.9 | ax placa | - | |
| 8 | garnitura | - | |
| 9 | pompa | - | |
| 10 | conducta combustibil | - | |
| 11.1 | placa motor | - | |
| 11.2 | turbina ventilare | - | |
| 11.3 | motor | - | |
| 11.4 | ax fixare placa | - | |
| 11.5 | fotorezistenta | - | |
| 12.1 | deflector | - | |
| 12.2 | electrod de aprindere | - | |
| 12.3 | diuza | - | |
| 12.4 | suport diuza | - | |
| 13.2 | soclu bloc control | - | |
| 13.3 | transformator | - | |
| 14 | cabluri de aprindere | - | |
| Nr. | Cod piesa | Piese disponibile la vanzare | |
| 001 | P2020445 | BLOC CONTROL / CONTROL BOX SIEMENS LOA 24.171B2BC | 301.09 |
| 002 | P2580402 | ELECTROVENTIL EVG1 / COIL SUNTEC 3713798 X AS-AT 230V. | 153.20 |
| 003 | P30900H0 | TUN DE ARDERE (STANDARD) / BLAST TUBE LO140 SHORT IDEA L=240 | 316.16 |
| 004 | P30900H1 | TUN DE ARDERE (EXTINS) / BLAST TUBE LO140 LONG IDEA L=340 | 361.32 |
| 005 | P6050154 | CABLURI DE APRINDERE / IGNITION CABLE L= 650 LO/NG140-200 | 19.02 |
| 006 | P1011808 | CARCASA / RED PLASTIC CASING IDEA LO140 | 147.91 |
| 007 | P2080283 | ELECTROZI DE APRINDERE / IGNITION ELECTRODE (TWIN-WIRE) LONG LO140/280 4MM | 44.37 |
| 008 | P2090027 | FILTRU COMBUSTIBIL / LIGHT OIL FILTER 3/8"" 20151/PE | 44.37 |
| 009 | P234FX22 | RACORDURI FLEXIBILE / FLEX G/N L=1000 3/8""M X 1/4""M C90° | 44.37 |
| 010 | P2510034 | FOTOREZISTENTA / PHOTORESISTOR SIEMENS QRB1A-A033B40B | 81.36 |
| 011 | P2540055 | CUPLAJ PLASTIC - MOTOR POMPA / PLASTIC COUPLING FOR AEG MOTOR (COD.051936) | 6.33 |
| 012 | P2110031 | GARNITURA / ISOLCART GASKET IDEA140/200-HS10/18 | 19.02 |
| 013 | P2180715 | MOTOR ELECTRIC / MOTOR AEG EB95C52/2-96383 180W-230/50 | 416.52 |
| 014 | P2590130 | POMPA / SUNTEC PUMP AS47A 1536 1P 0560 | 306.11 |
| 015 | p30200e9 | suport diuza (standard) | 0 |
| 016 | P30200F0 | SUPORT DIUZA (EXTINS) / NOZZLE HOLDER LO140/200..L..- | 242.99 |
| 017 | P30601C4 | CAP DE ARDERE / COMPLETE COMBUSTION HEAD DIFF. LO140 D69 S/EL | 216.58 |
| 018 | P2170231 | TRANSFORMATOR DE APRINDERE / IGNITION TRANSFORMER DANFOSS EBI (FRONT) 052F0036 | 137.35 |
| 019 | P2610004 | DIUZA / NOZZLE SIZE 0,75 / 6,00 GPH - 60° | 50.70 |
| 020 | p2150077 | turbina ventilare | 0 |
