>> arzatoare pe motorina >> seria idea 14-560kw >> idea lo280

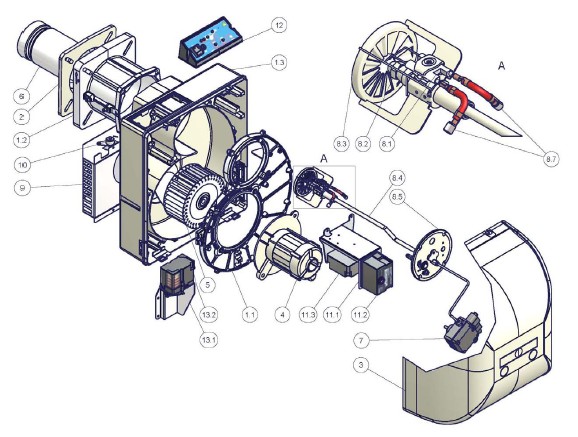

desen explodat arz. lo280gtnsroa- 310 kw | |||
| |||
| Poz. | Cod piesa | Denumire piesa | Lei fara TVA |
|---|---|---|---|
| 1.1 | placa suport motor | - | |
| 1.2 | flansa | - | |
| 1.3 | caseta arzator | - | |
| 2 | garnitura generator | - | |
| 3 | carcasa | - | |
| 4 | motor | - | |
| 5 | turbina | - | |
| 6 | tun de ardere standard | - | |
| 7 | pompa | - | |
| 8.1 | electrod de aprindere lung | - | |
| 8.2 | diuza | - | |
| 8,3 | cap de ardere | - | |
| 8,4 | suport diuza | - | |
| 8.5 | flansa | - | |
| 8.7 | cablu de aprindere | - | |
| 9 | ansamblu clapeta aer | - | |
| 10 | indexor | - | |
| 11.1 | clema fixare | - | |
| 11.2 | bloc control | - | |
| 11.3 | transformator de aprindere | - | |
| 12 | panou frontal de control | - | |
| 13.1 | brida suport | - | |
| 13.2 | servomecanism | - | |
| Nr. | Cod piesa | Piese disponibile la vanzare | |
| 001 | P1011803 | CARCASA / RED PLASTIC CASING IDEA 400 | 195.45 |
| 002 | P2020445 | BLOC CONTROL LOA24 / CONTROL BOX SIEMENS LOA 24.171B2BC | 301.09 |
| 003 | P2020453 | BLOC CONTROL LMO24 / CONTROL BOX SIEMENS LMO 24.111B2 | 535.48 |
| 004 | P2080283 | ELECTROZI DE APRINDERE / IGNITION ELECTRODE (TWIN-WIRE) LONG LO140/280 4MM | 44.37 |
| 005 | p2090001 | filtru combustibil | 0 |
| 006 | P2110059 | GARNITURA GENERATOR / ISOLCART GASKET IDEA 350-400 | 38.04 |
| 007 | P2150071 | TURBINA / FAN WHEEL TLR 160X74 R-E 5W/12,7H8 | 158.48 |
| 008 | P2170231 | TRANSFORMATOR DE APRINDERE / IGNITION TRANSFORMER DANFOSS EBI (FRONT) 052F0036 | 137.35 |
| 009 | P2180717 | MOTOR / MOTOR AEG EB 95C 65/2 250W-230/50 | 599.35 |
| 010 | P234FX22 | RACORDURI FLEXIBILE / FLEX G/N L=1000 3/8""M X 1/4""M C90° | 44.37 |
| 011 | P2510034 | FOTOREZISTENTA / PHOTORESISTOR SIEMENS QRB1A-A033B40B | 81.36 |
| 012 | P2540055 | CUPLAJ MOTOR-POMPA / PLASTIC COUPLING FOR AEG MOTOR (COD.051936) | 6.33 |
| 013 | P2580402 | BOBINA EVG1 / COIL SUNTEC 3713798 X AS-AT 230V. | 153.20 |
| 014 | P2590130 | POMPA / SUNTEC PUMP AS47A 1536 1P 0560 | 306.11 |
| 015 | 261… | diuze | 0 |
| 016 | P30601C5 | CAP DE ARDERE / COMPLETE COMBUSTION HEAD DIFF. LO200/280 D.84 S/EL | 147.91 |
| 017 | P30900L3 | TUN DE ARDERE STANDARD / BLAST TUBE LO280 SHORT IDEA L=185 | 426.55 |
| 018 | P30900L4 | TUN DE ARDERE EXTINS / BLAST TUBE LO280 LONG IDEA L=330 | 456.67 |
| 019 | P6050153 | CABLURI DE APRINDERE / IGNITION CABLE L= 910 LO/NG280/400/550 | 25.36 |
