>> arzatoare pentru cuptoare de paine >> seria miniflam pe gaz 35-200kw >> miniflam tecnopan s5

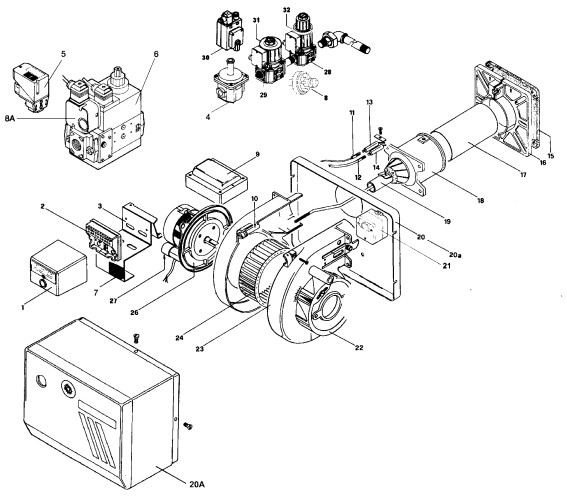

desen explodat arz.s5mtnlrob015 | |||
| |||
| Poz. | Cod piesa | Denumire piesa | Lei fara TVA |
|---|---|---|---|
| 1 | P2020221 | BLOC DE CONTROL VM 41 / CONTROL BOX BRAHMA VM41 230V 50/60HZ | 535.48 |
| 1a | P2020443 | BLOC DE CONTROL LGB21 / CONTROL BOX SIEMENS LGB 21.330A2 | 1364.00 |
| 1b | p2020444 | bloc de control lmg25 | 0 |
| 2 | p2030205 | soclu bloc de control vm 41 | 0 |
| 2a | P2030415 | SOCLU BLOC DE CONTROL LGB-LMG / CONTROL BOX SOCKET SIEMENS LOA-LGB AGK11 | 50.70 |
| 3 | p2430004 | brida suport | 0 |
| 3a | p2060002 | distantier | 0 |
| 4 | p2800048 | filtru regulator de gaz | 0 |
| 5 | P2191604 | BLOC CONTROL ETANSEITATE (OPTIONAL) / GAS PROVING SYSTEM VPS 504/02 230/50 WITHOUT PLUG | 2186.95 |
| 6 | P2190339 | GRUP VANE MULTIBLOC / MULTIBLOC MBDLE 405 B01S20 1/2"" | 2006.28 |
| 7 | P6200043 | CONECTOR 7 PINI (MAMA) / 7-PIN FEMALE CONNECTOR DIN4791 | 25.36 |
| 7a | P6200042 | CONECTOR 7 PINI (TATA) / 7-PIN MALE CONNECTOR DIN4791 | 25.36 |
| 8 | p2160059 | presostat de gaz de minim | 0 |
| 8a | p2160052 | presostat de gaz de minim | 0 |
| 9 | P2170108 | TRANSFORMATOR DE APRINDERE / IGNITION TRANSFORMER COFI 820P W/B.230V-50HZ | 291.06 |
| 10 | p2320003 | surub reglare cap | 0 |
| 11 | P6050211 | CABLU DE DETECTIE / DETECTION CABLE L= 540 S3-S5/10/18 | 19.02 |
| 12 | P6050119 | CABLU DE APRINDERE / IGNITION CABLE L= 320 G4-G6-HO-S3-S5 | 12.68 |
| 13 | P2080108 | ELECTROD DE DETECTIE / DETECTION ELECTRODE HE-S3-S5-S10-S18 4MM | 44.37 |
| 14 | P2080218 | ELECTROD DE APRINDERE / IGNITION ELECTRODE HE-S3-S5-S10-S18 4MM | 44.37 |
| 15 | p2110027 | garnitura | 0 |
| 16 | p2100025 | flansa | 0 |
| 17 | P3090001 | TUN DE ARDERE / BLAST TUBE S5""CE""-S5M-S5B L=153 | 406.48 |
| 17a | P3090076 | TUN DE ARDERE EXTINS / BLAST TUBE S5L""CE""-S5M-S5B L L=252 | 510.92 |
| 18 | p2300020 | piesa de legatura | 0 |
| 19 | P30600A1 | CAP DE ARDERE / COMPLETE COMBUSTION HEAD S5 ""CE"" L=305 | 687.78 |
| 19a | P30600A4 | CAP DE ARDERE PENTRU TUN EXTINS / COMPLETE COMBUSTION HEAD S5L ""CE"" L=395 | 756.55 |
| 20 | p2010112 | placa suport | 0 |
| 20a | P3010018 | CARCASA / METAL COVER S5-G6-M1 | 206.02 |
| 21 | P2160053 | PRESOSTAT DE AER / DUNGS AIR PRESSURE SWITCH LGW10 A2 | 206.02 |
| 22 | p1010701 | clapeta | 0 |
| 23 | p2050238 | ansamblu caseta | 0 |
| 24 | P2150003 | TURBINA / FAN WHEEL 133X52 S5M-S5B-M1 | 75.54 |
| 26 | P2180013 | MOTOR / MOTOR CD 3/2005 100W-230/50 | 401.47 |
| 27 | P6030005 | CONDENSATOR / 6,3 µF CAPACITOR 450VN | 38.04 |
| 28 | p2190512 | vana gaz ev2 eg25 l3 | 0 |
| 29 | p2190513 | vana gaz ev1 eg25 s3 | 0 |
| 30 | P2191601 | BLOC CONTROL ETANSEITATE (OPTIONAL) / GAS PROVING SYSTEM KRS TC218 R05T | 3494.35 |
| 31 | P2580304 | BOBINA ELECTROVANA EV1 BM8 GM0 / COIL BRAHMA BE8-GM0 PER EG25 | 306.11 |
| 32 | P2580304 | BOBINA ELECTROVANA EV2 BM8 GM0 / COIL BRAHMA BE8-GM0 PER EG25 | 306.11 |
